AIR FILTER PRESSURE REGULATORS (ALUMINIUM)

news

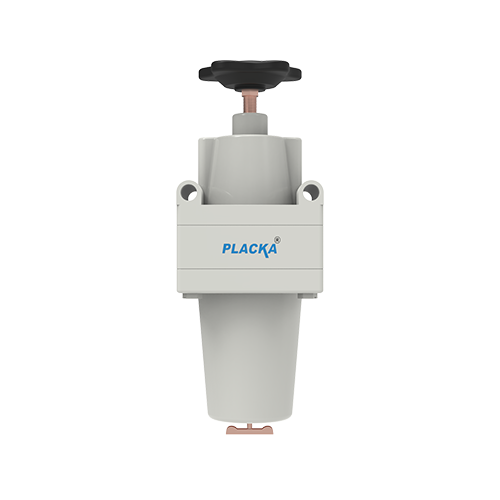

Your Air-Actuated Instrument and Equipment work at their best for a long period when you feed with clean dry air at a constant prescribed pressure. PLACKA FPR- Series Air Filter-cum Pressure Regulator removes completely the moisture and dust particles, and provides the exact pressure constantly at varying air demands. Its compactness and highly accurate performance for a long period with minimum of maintenance make for an optimum compromise between the ideal and the practical, consistent with end-use. This economically priced unit is extensively used for Process Control Instruments, Air-actuated Control Valves, Cylinders transducers and other equipments.

1. Longer life assured as the materials used are selected for their corrosion resistance and long wear.

2. Excellent characteristics throughout the full flow range particularly at low flow zone in which the unit usually serves Instruments.

3. Negligible pressure drop due to high porosity ratio of the filter. The filter is reusable and has a high impact strength.

Service: Air

Max. Inlet pressure: 250PSI 18kg/cm2

Enclosure: Weather proof(65)

Outlet pressure ranges: Refer Table 1

End connections: 1 inlet, 1 outlet and 1 pressure gauge port

Bowl capacity: 130 cc(Approx)

Ambient temperature: Upto80°c

Adjustment knob with nut: Unbreakable plasic monulded on C.S stem(SS on request)

Body spring case and filter Bowl: Die cast aluminium alloy

Filter: Sintered Bronze/ porus plastic 15 microns Standard 5, 25, 40, microns optional

Main valve: Neoprene moulded on SS stem

Drain valve: Brass - Standard(SS on request)

Main valve spring: SS

Diaphragm: Nylon reinforced Neoprene

Main spring: spring steel

Mounting: Surface or panel
