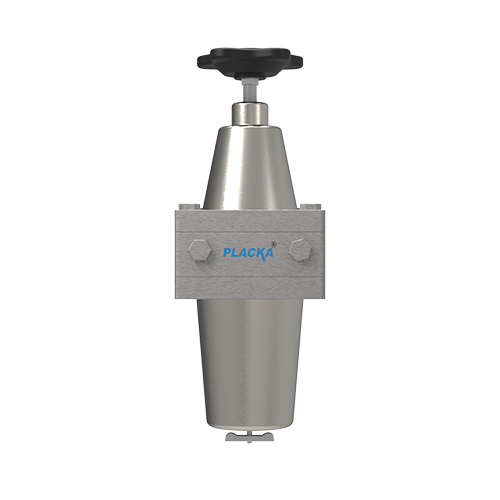

Stainless Steel Air Filter Pressure Regulators

news

Your Air-actuated Instrument and Equipment work at their best for a long period when you feed with clean dry air at a constant prescribed pressure. PLACKA Stainless Steel Air Filter-cum- Pressure Regulator removes completely the moisture and dust particles, and provides the exact pressure constantly at varying air demands. Its long period with minimum of maintenance make for an optimum compromise between the ideal and the practical, consistent with end-use. They are designed & suitable for very corrosive operating environment conditions. This economically priced units is extensively used for Process Control Instruments, Air-actuated Control Valves, Cylinders and other equipments.

1. Longer life assured as the materials used are selected for their corrosion resistance and long wear.

2. Excellent characteristics thoughout the full flow range particularly at low flow zone in which the units usually serves Instruments.

3. Negligible pressure drop due to high porosity ratio of the filter. The filter is reusable and has a high impact strength.

Service: Air

Max. inlet Pressure: 250 PSI 18 kg/cm2

Enclosure: Weather Proof (IP65)

Outlet Pressure Ranges: Refer Table 1 1 inlet, 1 outlet and 1 pressure gauge port

Bowl Capacity: 130 cc (Approx.)

Ambient Temperature: Upto 80° c

Adjustment knob with nut: Unbreakable plastic moulded on S.S. Stem

Body Spring Case and Filter Bowl: Investment Casting SS316

Filter: Sintered Bronze / Poly proylene Plastic 15 Microns Standard 5, 25, 40 Microns Optional SS filter 5 Micron Optional

Main Valve: Neoprene Moulded on SS stem

Drain Valve: SS

Main Valve Spring: SS

Diaphragm: Nylon Reinforced Neoprene

Main Spring: Spring Steel

Mounting: Surface or Panel
