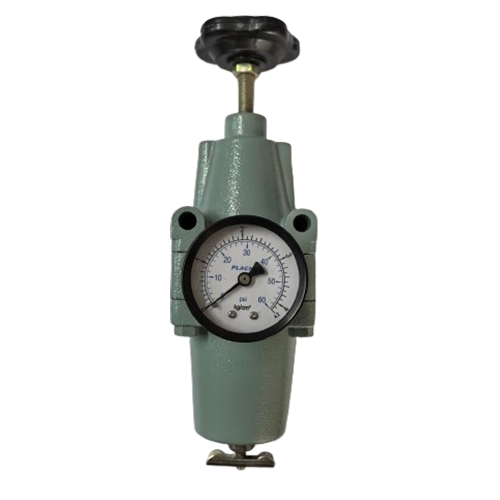

Air Filter Pressure Regulator (Aluminium)

Team

1. Longer life assured as the materials used are selected for their corrosion resistance and long wear.

2. Excellent characteristics throughout the full flow range particularly at low flow zone in which the unit usually serves Instruments.

3. Negligible pressure drop due to high porosity ratio of the filter. The filter is reusable and has a high impact strength.

Service: Air

Max. Inlet pressure: 250PSI 18kg/cm2

Enclosure: Weather proof(65)

Outlet pressure ranges: Refer Table 1

End connections: 1 inlet, 1 outlet and 1 pressure gauge port

Bowl capacity: 130 cc(Approx)

Ambient temperature: Upto80°c

Adjustment knob with nut: Unbreakable plasic monulded on C.S stem(SS on request)

Body spring case and filter Bowl: Die cast aluminium alloy

Filter: Sintered Bronze/ porus plastic 15 microns Standard 5, 25, 40, microns optional

Main valve: Neoprene moulded on SS stem

Drain valve: Brass - Standard(SS on request)

Main valve spring: SS

Diaphragm: Nylon reinforced Neoprene

Main spring: spring steel

Mounting: Surface or panel

Introduction to the Air Filter Pressure Regulator (Aluminium)

The Air Filter Pressure Regulator (Aluminium) is a high-performance pneumatic control component designed to regulate, filter, and stabilize compressed air in industrial applications. Manufactured by Placka Instruments India Pvt. Ltd., it ensures consistent output pressure while removing moisture, oil, and particulates from the air supply. This makes it an essential device for protecting downstream equipment and maintaining process efficiency.

Crafted from premium-grade aluminium, this aluminium air pressure regulator is both lightweight and corrosion-resistant, making it ideal for industries that demand durability without adding excessive weight to their systems. Its design is optimized for ease of maintenance, long service life, and reliability even in challenging operating conditions.

  • Ensures consistent and stable air pressure output
  • Filters moisture, oil, and particulates from compressed air
  • Lightweight yet robust aluminium construction
  • Ideal for a wide range of industrial environments
  • Designed and tested for long service life

Importance in Industrial Applications

In industrial automation, air filtration for industrial automation is essential to keep systems running efficiently. Without a quality industrial air filter pressure regulator, equipment performance can degrade due to contaminants and pressure fluctuations. This product safeguards sensitive pneumatic devices, extending their operational lifespan.

Our pneumatic air filter regulator aluminium model is engineered to withstand demanding conditions, making it the preferred choice for industries such as manufacturing, automotive, food processing, and pharmaceuticals. It not only protects equipment but also enhances process accuracy and consistency, directly contributing to higher productivity.

  • Prevents damage to sensitive pneumatic devices
  • Maintains accuracy in automated processes
  • Supports industries with strict air quality needs
  • Reduces downtime caused by air contamination
  • Enhances overall system reliability

Construction and Material Advantages

The aluminium body of this air regulator with filter aluminium body offers a superior balance between strength and weight. It is resistant to corrosion, ensuring longevity even in humid or chemically challenging environments. Aluminium also dissipates heat efficiently, preventing thermal stress during extended operations.

Each unit undergoes precision machining to meet exact tolerances, ensuring a leak-proof and efficient air regulation system. The internal filter element is made from high-quality materials that provide effective filtration without restricting airflow, allowing for both protection and performance in compressed air filter regulator aluminium systems.

  • Corrosion-resistant aluminium housing
  • Lightweight design for easy installation
  • Precision-machined components for leak prevention
  • Heat-resistant structure for longer operational life
  • High-quality filter element for optimal performance

Key Features and Functional Benefits

This aluminium pneumatic pressure regulator integrates both filtration and pressure control in a single compact unit. It is equipped with a clear pressure gauge for real-time monitoring and a user-friendly adjustment knob for precise pressure settings. The modular design allows easy integration into existing pneumatic setups.

The regulator’s ability to remove contaminants while regulating pressure reduces the need for separate devices, lowering installation costs and space requirements. This dual-functionality design is particularly beneficial for high-volume manufacturing lines where pressure stability in pneumatic systems is critical.

  • Integrated filter and regulator in one unit
  • Easy-to-read pressure gauge for accurate monitoring
  • Adjustable pressure settings for flexibility
  • Space-saving modular design
  • Reduces need for multiple devices

Performance Specifications

Built for consistent output, this lightweight air filter pressure control device maintains precise pressure control even under variable input conditions. The filtration system removes contaminants as small as microns, ensuring that only clean air passes through. It operates effectively across a wide range of inlet pressures, making it suitable for diverse air preparation unit aluminium applications.

The aluminium build ensures that the regulator maintains integrity under mechanical stress and vibration, which is common in industrial environments. This performance reliability minimizes maintenance interruptions and maximizes uptime.

  • Maintains stable output pressure under varying inputs
  • Removes fine particulate contaminants effectively
  • Wide inlet pressure compatibility
  • Vibration-resistant construction
  • Minimizes downtime with dependable performance

Applications Across Industries

The versatility of the air filter pressure regulator aluminium makes it applicable to multiple sectors. In automotive plants, it ensures precision in pneumatic tools. In food processing, it delivers clean, oil-free air essential for hygiene compliance. Pharmaceutical industries rely on it for sterile air systems, while manufacturing plants use it for stable automation processes.

Its adaptability also extends to shipbuilding, electronics assembly, and packaging lines, where moisture and oil removal in compressed air is critical to quality assurance and operational safety.

  • Automotive industry – for pneumatic tool performance
  • Food & beverage sector – maintains hygiene standards
  • Pharmaceutical production – supports sterile environments
  • Manufacturing – enhances automation stability
  • Shipbuilding & electronics – ensures consistent air quality

Compliance and Certifications

Our regulators meet stringent industrial standards and comply with ISO 9001:2015 quality management protocols. They are designed in line with EIL approved specifications, ensuring suitability for critical applications in oil & gas, power generation, and process control industries.

Each high-quality air filter pressure regulator for manufacturing undergoes rigorous quality checks, including pressure tests, leakage tests, and filtration efficiency validation, before leaving our facility. This guarantees that every customer receives a durable aluminium filter regulator for compressed air lines that meets or exceeds performance expectations.

  • ISO 9001:2015 certified manufacturing
  • EIL approved for critical applications
  • Multi-stage quality inspection
  • Pressure and leak-tested for reliability
  • Filtration efficiency validated before dispatch

Installation and Maintenance Ease

Designed for quick installation, the Air Filter Pressure Regulator (Aluminium) features standard connection sizes compatible with most pneumatic systems. Its lightweight design simplifies handling during installation, and the modular structure allows easy replacement of filter elements without disassembling the entire unit.

Routine maintenance is straightforward, requiring minimal downtime. The transparent filter bowl option allows users to visually inspect and replace filters before they affect performance, ensuring maintenance-free air regulators in continuous operation.

  • Standard connection sizes for universal fit
  • Lightweight for easy handling
  • Modular design for quick servicing
  • Transparent bowl option for visual checks
  • Minimal downtime during maintenance

Advantages Over Other Materials

Compared to regulators made from heavier metals like steel, aluminium offers superior corrosion resistance and a much lighter weight, making it ideal for mobile or suspended pneumatic setups. While plastic-bodied regulators may be cheaper, they lack the durability, heat resistance, and pressure tolerance of corrosion-resistant aluminium air pressure regulators.

This makes aluminium regulators the best balance between strength, performance, and cost-effectiveness for industries that value both portability and longevity.

  • Corrosion-resistant compared to steel
  • Lighter weight for easier installation
  • More durable than plastic alternatives
  • Withstands higher temperatures and pressures
  • Ideal balance of performance and cost

Why Choose Placka Instruments

With over 50 years of experience, Placka Instruments India Pvt. Ltd. is a trusted name in pneumatic control components. Our best aluminium air filter pressure regulator for industry reflects our engineering expertise, adherence to global quality standards, and dedication to customer satisfaction.

By choosing Placka, you get more than just a product — you gain a reliable partner committed to providing aluminium pneumatic filter regulators for automation that enhance efficiency, safety, and productivity across industries.

  • Over five decades of manufacturing excellence
  • Proven track record with major industries
  • Customization options available
  • Unmatched post-sales technical support
  • Commitment to continuous innovation

“For air that’s cleaner, pressure that’s steadier, and performance that’s unmatched — trust the Air Filter Pressure Regulator (Aluminium) from Placka Instruments to keep your operations running at their best.”
