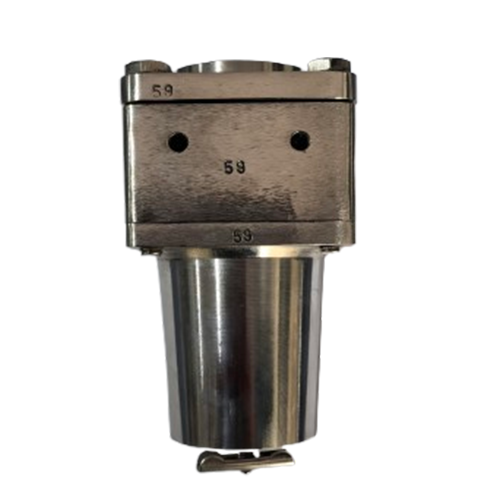

AIR FILTER (STAINLESS STEEL)

Team

1. Longer life assured as the materials used are selected for their corrosion resistance and long wear.

2. Excellent characteristics throughout the full flow range particularly at low flow zone in which the unit usually serves Instruments.

3. Negligible pressure drop due to high porosity ratio of the filter. The filter is reusable and has high impact strength.

02. SPECIFICATIONS:

Service: Air / Natural Gas

Max. Inlet Pressure: 250 PSI (18 kg/cm²)

Enclosure: Weather Proof (65)

Outlet Pressure Ranges: Refer Table 1

End Connections: 1 inlet, 1 outlet (pressure gauge port on request)

Bowl Capacity: 130 cc (Approx.)

Ambient Temperature: 100 °C

Body, Spring Case and Filter Bowl: SS304 / SS316

Filter: Sintered Bronze – 5, 25, 40, 50 microns (optional) / Polypropylene Plastic – 5, 15 microns (standard) / SS316 – 5 microns

Main Valve: Neoprene moulded on SS stem

Drain Valve: SS304 / SS316

Main Valve Spring: Stainless Steel

Diaphragm: Nylon reinforced Neoprene / EPDM / BUNA-N / Whitestone

Main Spring: Spring Steel

Mounting: Surface or Panel

Introduction to the Stainless Steel Air Filter by Placka Instruments Pvt. Ltd.

Placka Instruments Pvt. Ltd. proudly presents the Stainless Steel Air Filter, a top-tier pneumatic filtration solution designed for industries demanding exceptional durability, corrosion resistance, and hygiene. Crafted with precision from premium-grade stainless steel, this air filter is ideal for harsh industrial environments throughout India, including key manufacturing centers such as Tamil Nadu and Chennai.

Our stainless steel air filters effectively remove moisture, oil aerosols, and particulate contaminants from compressed air, protecting downstream pneumatic components and ensuring uninterrupted, efficient operation. Its rugged construction and hygienic design make it the preferred choice for critical sectors like pharmaceuticals, food processing, marine, and chemical industries.

  • Robust stainless steel construction for corrosion and chemical resistance
  • High-efficiency filtration ensures clean, dry compressed air
  • Designed for demanding industrial conditions in India, Tamil Nadu, and Chennai
  • Ideal for hygienic and heavy-duty pneumatic applications
  • Easy installation and maintenance with modular design

The Importance of Stainless Steel Air Filters in Industrial Pneumatic Systems

In industrial processes where pneumatic systems are vital, the quality of compressed air is non-negotiable. Contaminants such as oil mist, water vapor, and fine dust particles can lead to equipment failures, product contamination, and costly downtime.

Placka’s Stainless Steel Air Filter plays a crucial role in maintaining air purity and equipment protection in sectors across India, particularly in industrial hubs like Tamil Nadu and Chennai. It ensures reliable pneumatic operation, extends equipment life, and supports compliance with stringent industrial and hygiene standards.

  • Protects sensitive pneumatic equipment from contamination and wear
  • Maintains air purity essential for quality and safety
  • Reduces maintenance frequency and operational disruptions
  • Meets regulatory air quality requirements in critical industries
  • Trusted across Indian manufacturing centers including Tamil Nadu and Chennai

Superior Stainless Steel Construction for Harsh Industrial Environments

The stainless steel body provides unmatched resistance to corrosion, chemical exposure, and extreme temperatures, making it ideal for challenging Indian industrial environments — from coastal Chennai with salt-laden air to chemical plants in Tamil Nadu.

Unlike aluminium or plastic filters, stainless steel retains mechanical strength and surface integrity under prolonged exposure to moisture and harsh chemicals, guaranteeing longer service life and superior reliability. Precision engineering ensures leak-proof joints and efficient airflow.

  • Corrosion-resistant stainless steel housing withstands aggressive environments
  • High mechanical strength for long-lasting durability
  • Resistant to chemical vapors, saltwater, and high humidity
  • Leak-proof precision machining for reliable filtration
  • Suitable for continuous operation in Indian industrial settings

Key Features and Functional Benefits of the Stainless Steel Air Filter

Placka’s Stainless Steel Air Filter offers a comprehensive solution combining filtration efficiency and industrial robustness. It includes transparent bowls made from impact-resistant materials for easy visual monitoring of contaminants and moisture. The filter elements are replaceable, promoting cost-effective maintenance.

Compact and modular, the unit fits seamlessly into existing pneumatic setups across India, including in Tamil Nadu and Chennai. Its design minimizes pressure drops while maintaining high filtration efficiency, ensuring consistent air supply quality without sacrificing system performance.

  • Impact-resistant transparent bowl for easy contamination checks
  • Modular, compact design for flexible installation
  • Replaceable filter cartridges for economical upkeep
  • Low pressure drop design optimizes airflow
  • Suitable for heavy-duty pneumatic applications

Performance Specifications Ensuring Industrial Excellence

Our stainless steel air filters efficiently remove particles down to micron levels, along with oil and moisture aerosols, ensuring high air purity for critical applications. The filter maintains stable operation under variable inlet pressures and airflows typical of Indian industrial pneumatic systems.

Built to withstand vibration, mechanical shocks, and temperature fluctuations, it guarantees reliable filtration performance even in demanding factories and plants across India, including Tamil Nadu and Chennai’s coastal and industrial zones.

  • Micron-level particle filtration with moisture and oil removal
  • Stable operation under fluctuating pressure and flow conditions
  • Resistant to industrial vibrations and mechanical shocks
  • Suitable for continuous industrial use in Indian environments
  • Helps reduce downtime and extends pneumatic equipment lifespan

Wide Industrial Applications Across India

The stainless steel air filter is preferred in sectors requiring the highest air quality and equipment protection. Across India, and especially in Tamil Nadu and Chennai, industries such as pharmaceuticals, food & beverage, chemical processing, marine, and oil & gas rely on Placka’s filters to maintain operational integrity and comply with hygiene standards.

  • Pharmaceutical plants with sterile air requirements
  • Food & beverage production demanding hygienic air supply
  • Chemical and petrochemical processing plants
  • Marine and offshore operations requiring corrosion resistance
  • Oil & gas industry pneumatic systems needing reliable filtration

Commitment to Quality and Industry Compliance

Placka Instruments Pvt. Ltd. adheres to strict quality management protocols certified under ISO 9001:2015. Each stainless steel air filter undergoes rigorous quality control including pressure testing, leak checks, and filtration efficiency validation before shipment.

This ensures that customers across India, including industrial hubs like Tamil Nadu and Chennai, receive reliable, high-performance filters that meet and exceed industry standards.

  • ISO 9001:2015 certified manufacturing process
  • Comprehensive pressure and leak testing for safety and reliability
  • Validated filtration performance to ensure clean air output
  • Conformance with industrial safety and hygiene regulations
  • Proven reliability across Indian industries

Easy Installation and Maintenance Features

The stainless steel air filter is designed for hassle-free installation with standard connection sizes compatible with most Indian pneumatic systems. The modular design allows for quick replacement of filter elements and simple cleaning without complete disassembly.

This user-friendly design minimizes downtime and maintenance costs for Indian industries in Tamil Nadu, Chennai, and beyond, enabling smooth and cost-effective pneumatic operations.

  • Universal connection sizes for easy integration
  • Modular, replaceable filter elements for fast servicing
  • Stainless steel smooth surfaces simplify cleaning
  • Transparent bowls aid maintenance scheduling
  • Minimal operational downtime during filter servicing

Advantages Over Aluminium and Plastic Filters

Compared to aluminium, stainless steel offers superior corrosion resistance and mechanical strength, especially important in coastal and chemical-heavy Indian industrial regions such as Chennai and Tamil Nadu. Against plastic filters, stainless steel provides higher temperature tolerance and longer lifespan under industrial stress.

This makes Placka’s stainless steel air filter the premium choice for industries requiring uncompromising durability and hygiene compliance.

  • Superior corrosion resistance over aluminium in harsh environments
  • Higher mechanical strength and pressure tolerance than plastic
  • Excellent resistance to cleaning chemicals and high temperatures
  • Longer operational lifespan with reduced replacements
  • Optimal for demanding Indian industrial conditions

Why Choose Placka Instruments Pvt. Ltd. for Stainless Steel Air Filters?

With over 50 years of expertise in pneumatic control and filtration solutions, Placka Instruments Pvt. Ltd. is a leading manufacturer and supplier of stainless steel air filters across India, including Tamil Nadu and Chennai.

Our commitment to quality, customization, and technical support makes us the trusted partner for industries needing durable, reliable air filtration systems that enhance operational efficiency and meet rigorous hygiene standards.

  • 50+ years of pneumatic manufacturing expertise
  • Trusted supplier across Indian industrial sectors
  • Customization options for specific application needs
  • Dedicated technical support and customer service
  • Continuous innovation for industry-leading filtration solutions

"For industries across India, including Tamil Nadu and Chennai, demanding unmatched durability, hygiene, and performance — Placka Instruments’ Stainless Steel Air Filter delivers the ultimate pneumatic air purification solution that keeps your operations clean, efficient, and reliable."
